Draadloos alarmsysteem – Bewegingsmelder – Magneetcontact – Super snelle bediening via app (iOS/Android) – Hikvision

Het Hikvision draadloze alarm is een uniek, snel, professioneel en betrouwbaar systeem wat voor iedereen eenvoudig met een app is te bedienen. Het kan uitgebreid worden tot 32 componenten waaronder magneet contacten, passief infrarood detectoren, rookmelders, co2 melders, watermelders (bijvoorbeeld bij uw wasmachine), afstandsbedieningen en laten we vooral de camera’s niet vergeten.
Zo kunt u bijvoorbeeld de camera’s aan elke willekeurige melder koppelen zodat u direct de juiste beelden binnen krijgt van de ruimte waar iets loos is.

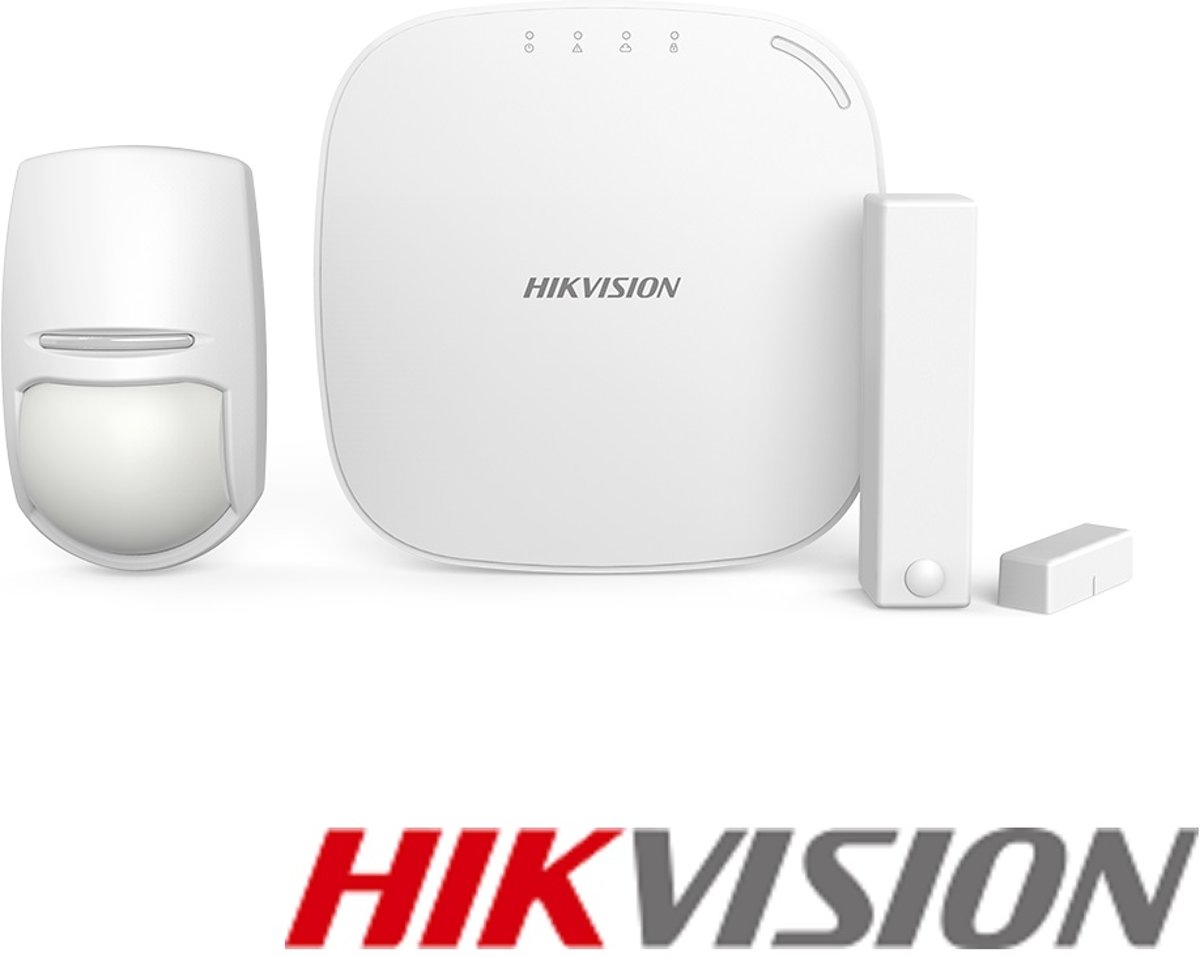

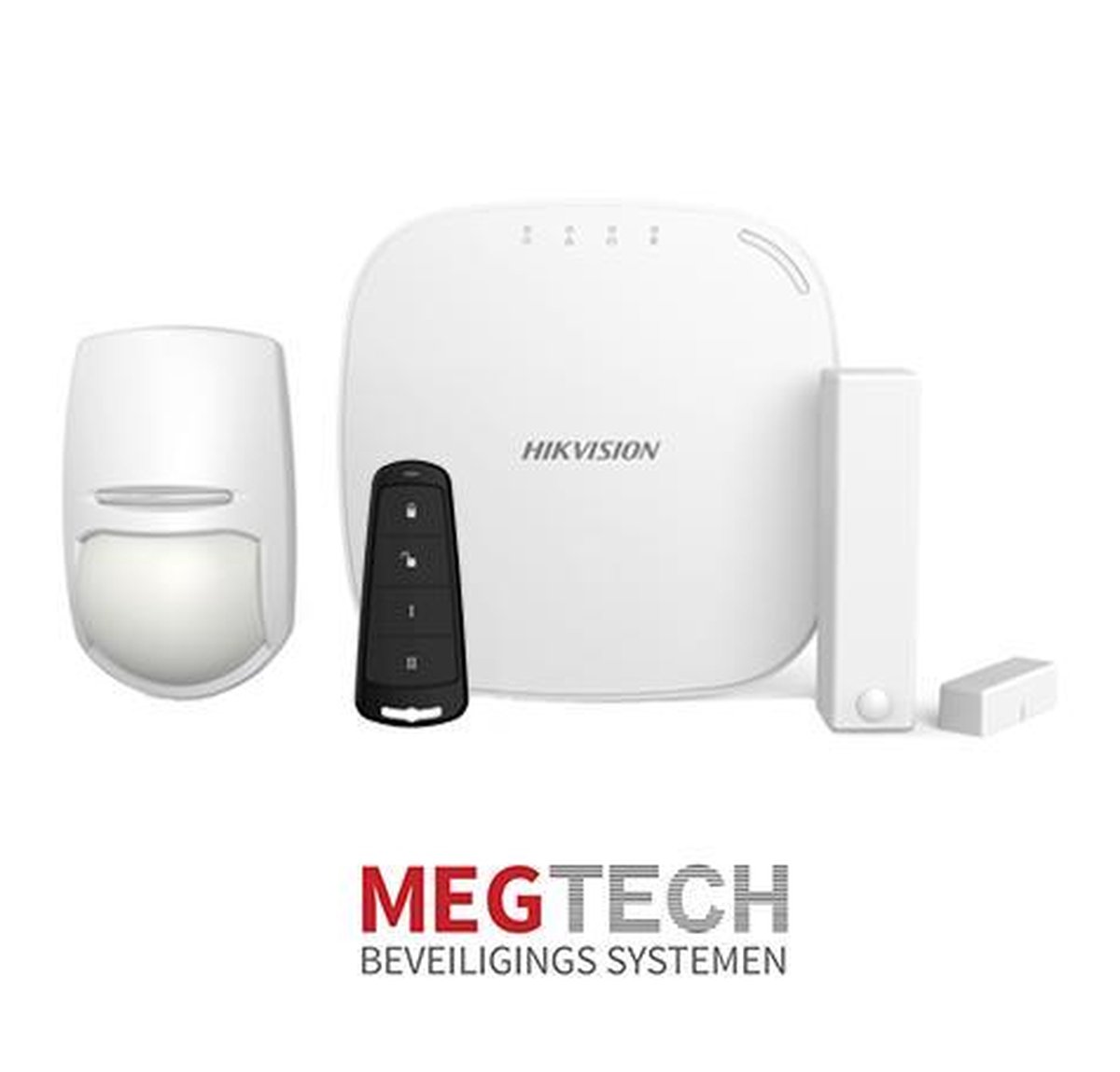

Kit includes security control panel of 32 wireless zones, AX series. WiFi, LAN and GPRS communication support, such as ISAPI and SIA-Contact ID protocols. It is applicable to scenarios such as stores, homes, factories, warehouses, offices, etc.
The kit also includes a wireless PIR detector with double technology with pet inmunity and a wireless magnetic contact , both PYRONIX.
Control panel features
– Supports dual path communication of alarm events and other signals over LAN, Wi-Fi, GPRS and 3G/4G using a main and backup channel
– Supports up to 32 wireless inputs, 32 wireless outputs, 8 keyfobs and 2 sirens
– IVaas (Intruder Verification As A Service): Support up to 2 channel 7 seconds pre/post alarm recording for Video Verification(Hikvision IP camera/3rd party IP camera support ONVIF)
– Supports viewing event video via mobile client and email
– Supports doorbell function: The detector rings like a doorbell when it is triggered in disarming status
– Voice prompt for configuration and operation
– Configuration via web client, mobile client, or client software
– HYUNDAI NEXT GEN devices supported, 100% compatible via HIK-Connect
– Pushs alarm notification via messages, phone calls, and email
– SIA-Contact ID protocol compatible
– Long distance two-way communication (800m in open area)
– Cifrado de datos AES de 128 bits
– Supports LED indicator to indicates system status
– 4520 mAh lithium backup battery supports up to 12h power supply
Control panel specifications
– RF frequency: 868 MHz
– RF modulation: 2GFSK
– RF range: 800 m (in open field)
– Network interface: Ethernet 10/100M auto-adaptive
– GPRS: Supports reporting push notifications to ARC & Cloud, text notification via SMS, and audio notification via phone call
– Standard WiFi: 802.11b/g/n
– WiFI frequency: 2,4GHz
– Mobile app: iVMS-4200 and mobile APP
– Protocols: SIA – Contact ID
– IC cards: 12
– Users: 13 users (1 installer, 1 admin and 11 general users)
– Power supply: 5V DC, 10W
– Consumption (without HDD): 5,6W
– Working temperature: -10°C ~ +55°C
– Working RH: 10% ~ 90%
– Material: Policarbonate and ABS plastic
– Dimensions: 155 x 155 x 35 mm
PYRONIX
PIR detector features
– Double technology PIR Pyronix wireless detector Enforcer protocol
– Pet inmunity up to 25 kg
– 10 meter range, 85°
– Sealed lens
– Enforcer 2 way wireless technology
– Frequency: 868MHz
– Blue Wave technology
– EN50131 de Grado 2 certificate
PYRONIX
Magnetic contact features
– 2 way wireless technology
– Frequency: 868MHz
– Wireless range 1600 m (open area)
– 1 wired input
– LED intensity signal indicator, bettery status, alarm and tamper
– Working temperature: -10°C ~ +50°C
– Power supply: 1x battery CR123A of 3V (2 year)
– ABS plastic case of 2 mm
– Dimensions: 104 x 27 x 25 mm
– Magnetic dimensions: 49 16 x 14 mm
– EN50131 Grade 2 certificate
